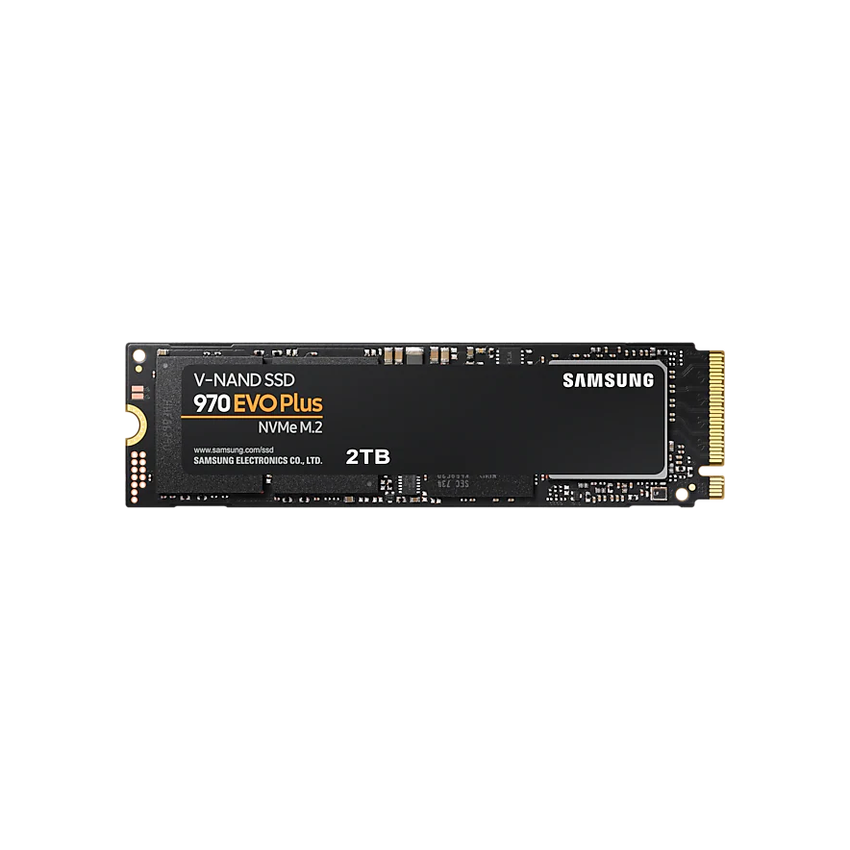

SAMSUNG 970 EVO PLUS 2TB NVME SSD

General Feature

• Application: Client PCs
• Capacity: 2,000 GB (1 GB = 1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
• Form Factor: M.2 (2280)
• Interface: PCIe Gen 3.0 x4, NVMe 1.3
• Dimension (W x H x D): 80.15 x 22.15 x 2.38 (mm)
• Weight: Max 8.0 g
• Storage Memory: Samsung V-NAND 3-bit MLC
• Controller: Samsung Phoenix Controller
• Cache Memory: Samsung 2 GB Low Power DDR4 SDRAM

Special Feature

• TRIM Support: Supported
• S.M.A.R.T Support:Supported
• GC (Garbage Collection): Auto Garbage Collection Algorithm
• Encryption Support: AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive)
• WWN Support: Not supported
• Device Sleep Mode Support: Yes

Performance

• Sequential Read: Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
• Sequential Write: Up to 3,300 MB/s * Performance may vary based on system hardware & configuration
• Random Read (4 KB, QD32): Up to 620,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4 KB, QD32): Up to 560,000 IOPS * Performance may vary based on system hardware & configuration
• Random Read (4 KB, QD1): Up to 19,000 IOPS * Performance may vary based on system hardware & configuration
• Random Write (4 KB, QD1): Up to 62,000 IOPS * Performance may vary based on system hardware & configuration

Environment

• Average Power Consumption (System Level):
• * Average: 6 W
• ** Maximum: 9 W (Burst mode)
• *** Actual power consumption may vary depending on system hardware & configuration
• Power consumption (Idle): Max. 30 Mw * Actual power consumption may vary depending on system hardware & configuration
• Allowable Voltage: 3.3 V ± 5 % Allowable voltage
• Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
• Operating Temperature: 0 - 70 ? Operating Temperature
• Shock: 1,500 G & 0.5 ms (Half sine)

• Software
• Management SW: Magician Software for SSD management
